Description

Konsung KSN-5 5L Oxygen Concentrator Price in Dhaka, Bangladesh

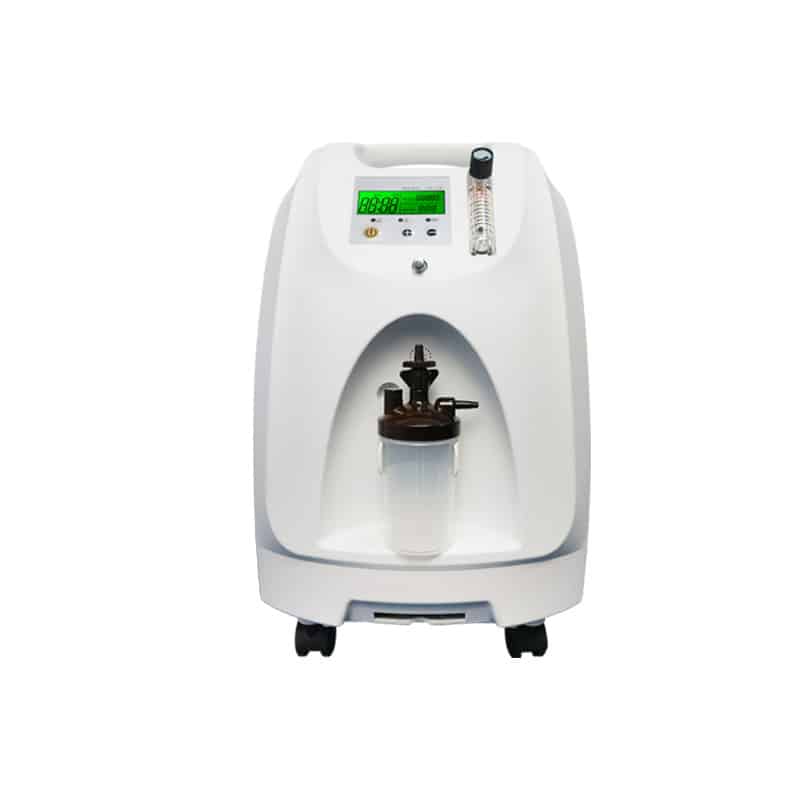

Konsung KSN-5 5L Oxygen Concentrator is a portable oxygen concentrator that delivers up to 5 liters of oxygen per minute. It is designed for people with chronic respiratory conditions such as COPD, emphysema, and asthma. The KSN-5 is a popular choice for home use because it is easy to use, portable, and quiet.

Products Features

• Superior oxygen Atomizing technology
• Advanced PSA technology
• High-efficiency molecular sieve bed
• Quiet working performance low noise 45dB
• Wise alarm systems offer a stable oxygen supply
• Compact design and lightweight
• Environmental protection, without pollution during using

Functions

Power off alarm, Overload protection,
High/Low-pressure alarm, Temperature alarm,
Error code indication,
Optional nebulizer, Oxygen purity alarm.

Specification

• Model: KSN-5
• Oxygen Purity: 93%‡3%
• Flow Range: 0-5L
• Noise(T): 45dB
• Input Voltage: 220V/110V
• Output Pressure: 30~80kPa
• Power (VA): 380
• Weight (Kgs): 16.8
• Carton size (mm): 385 X 400 X 660

The performance instruction：

• Classical of electrical safety: II Equipment, BF type application
• Running model: continuous operation.
• Outlet pressure：0.04 MPa～0.08MPa
• Pressure range of the atomization outlet is 60kPa~250kPa. Safety valve
• pressure range：15 kPa～40 kPa
• Overloading protector specification：250V AC, 3A；

How to use the function of nebulizer

• Take out the accompanied nebulizer, pour into proper atomized liquid by doctor’s advice, fix the water laps and tighten the cover in the clockwise.
• Unscrew the atomization cap and insert the atomization tube. Connect the other head of the atomization tube with the connecting nozzle on the nebulizer bottom.
• Turn on the oxygen concentrator and then put the mouthpiece into mouth and then the inhalation therapy starts.
• The pressure range of atomizing oxygen concentrator is 60kPa~ 250kPa.
• The atomization rate of the nebulizer on the oxygen concentrator≧0.2mL/ min.
